CMixer

EVENTS BROADCASTING & STUDIO MIXER

HANDLE ALL YOUR AUDIO NEEDS INSIDE-THE-BOX

PRICE 115$



- 10 MONO INPUT + 3 STEREO INPUT CHANNELS

- 5-BAND PARAMETRIC EQ & UP TO 4 PLUGINS PER CHANNEL

- AUTOMIX ENGINE CAN HANDLE MULTI-MICROPHONE SESSIONS AUTOMATICALLY

- FOLLOW MIXING MODE

- AUTOGATE MODE

- 2 STEREO MIXBUS SENDS

- 2 STEREO OUTPUTS

- EXTERNAL RECORDING OUTPUT

- SIDE-CHAIN GAIN CONTROL FOR STEREO CHANNELS

- PINK NOISE GENERATOR

- WAV/AIFF RECORDING

- PRESET MANAGER

- MIDI MATRIX. CONTROL CMIXER USING YOUR MIDI DEVICE.

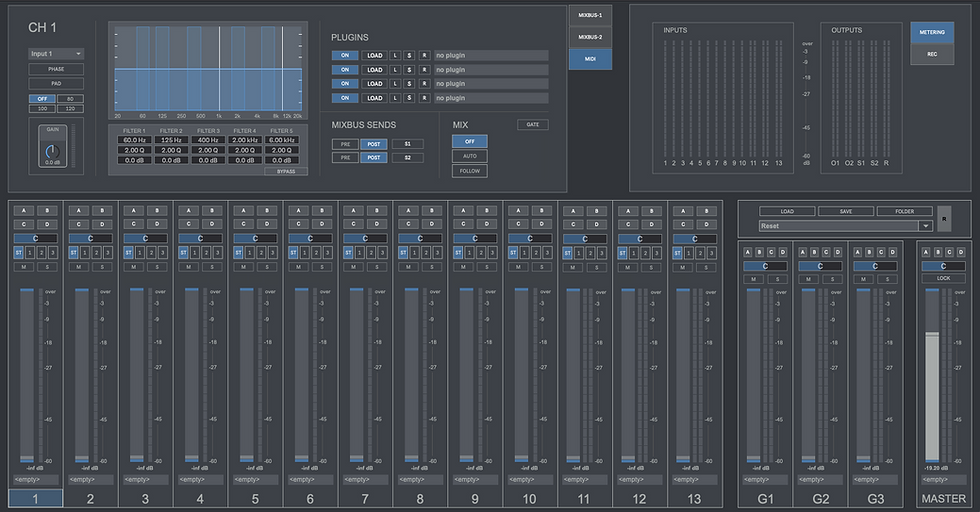

CMixer is a standalone software mixer conceived for events broadcasting purposes, including online radios, talk shows, dialog recordings, speeches, conferences, meetings, podcasting, and for small live concerts.



Run all your outboard equipment through an audio interface, modulars, drum machines, synthesizers, add some plugins, set levels and start playing with your outboard without getting distracted into a DAW environment.



It can handle all your audio needs inside-the-box, while using your favourite plugins to process the audio. Automix, Follow and Gate modes will help you to handle multi microphone broadcasting sessions.



CMixer allows using a computer and any audio interface instead of a hardware mixer to manage your audio broadcasting events.

MAIN FEATURES

INPUTS

10 mono input channles + 3 stereo input channels (stereo channels can also be used in mono configuration).

Phase invert. -20dB Pad. HPF. Input gain (+/- 15dB). 5-Band parametric EQ. 4 vst/au plugins. Panorama. Mute & Solo.

Automixing, Follow & Gate modes available only on mono input channels.



GROUP CHANNELS

3 group channels featuring 5-Band Parametric EQ & 4 vst/au pluings.



MIX BUS SENDS

2 Mix Bus sends pre/post. Dedicated mixing window for each Mix Bus.



AUTOMIX MODE

Automixing engine handle the best possible audio performance when working with multiple microphones in real-time, by controlling the output gains automatically and reducing feedback, comb filtering from nearby microphones and any background noise. It`s a kind of automixing system similar to Dugan automixer. See how it works here

FOLLOW MODE

This mode allows following the main speaker within a broadcasting session automatically. When activated only the main speaker channel will be listened, the rest of the channels will be muted.  See how it works here



GATE MODE

This processing mode allows activating or deactivating automatically any channel output depending the output level. This way you can get a clear audio signal from the microphones in use by removing any background noise or feedback coming from other open microphones that are not in use.  See how it works here

SIDE-CHAIN

A useful feature when playing some music through the stereo channels and want to lower its gain automatically each time that some one is speaking through a microphone.

RECORDING

Stereo/Mono recording. Multitrack recording mode allows recording only the selected input channels.

OUTPUTS

2 Stereo outputs. Out 2 can be also used for reference speakers and to monitor mix busses or recording.

2 Stereo Mix Bus Outputs

1 External recording output



MIDI MATRIX

Control CMixer using a midi device.

AUDIO IO

The amount of audio physical inputs & outputs for your session depends on your soundcard capabilities.

CMixer can work up to 192kHz and 24 Bits if your soundcard allows these settings (see your soundcard tech specs).

PRESETS MANAGER

Store and recall the whole session data.



KEYBOARD SHORTCUTS

For better & faster user experience.







AUDIO CONFIGURATION EXAMPLES

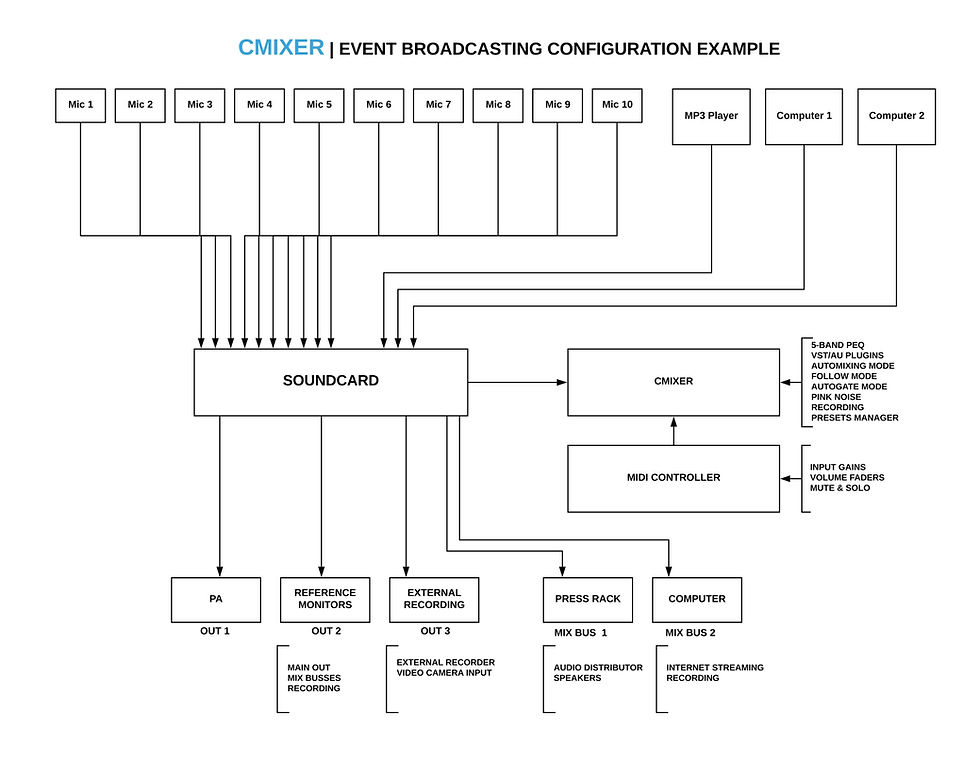

BROADCASTING EVENT SETUP

MUSIC PRODUCTION & LIVE SETUP

SYSTEM REQUIREMENTS

PC

INTEL MACHINE RUNNING OSX 10.7 OR LATER. MINIMUM 2GB RAM. 64 BITS PROCESSOR. 1920x1080 SCREEN RESOLUTION.





WINDOWS 7 OR LATER WITH A PENTIUM 4® OR CELERON® COMPATIBLE PROCESSOR OR HIGHER. MINIMUM 2GB RAM. 64 BITS PROCESSOR. 1920x1080 SCREEN RESOLUTION.











MAC

REVIEWS

GEARNEWS MAGAZINE

CMixer from Digital Brain Instruments is a streamlined virtual mixer that works with your computers audio interface to give you a live mixing console to handle all your external gear. It’s got a straightforward interface with faders, metering and parametric EQ. It lets you load plug-ins and can record the output of itself direct to disk.. Read more.
